Magnetic Particle Inspection Coils - Shipping Globally

All our coils are designed, developed and manufactured on-site in Edmonton, Alberta, Canada.

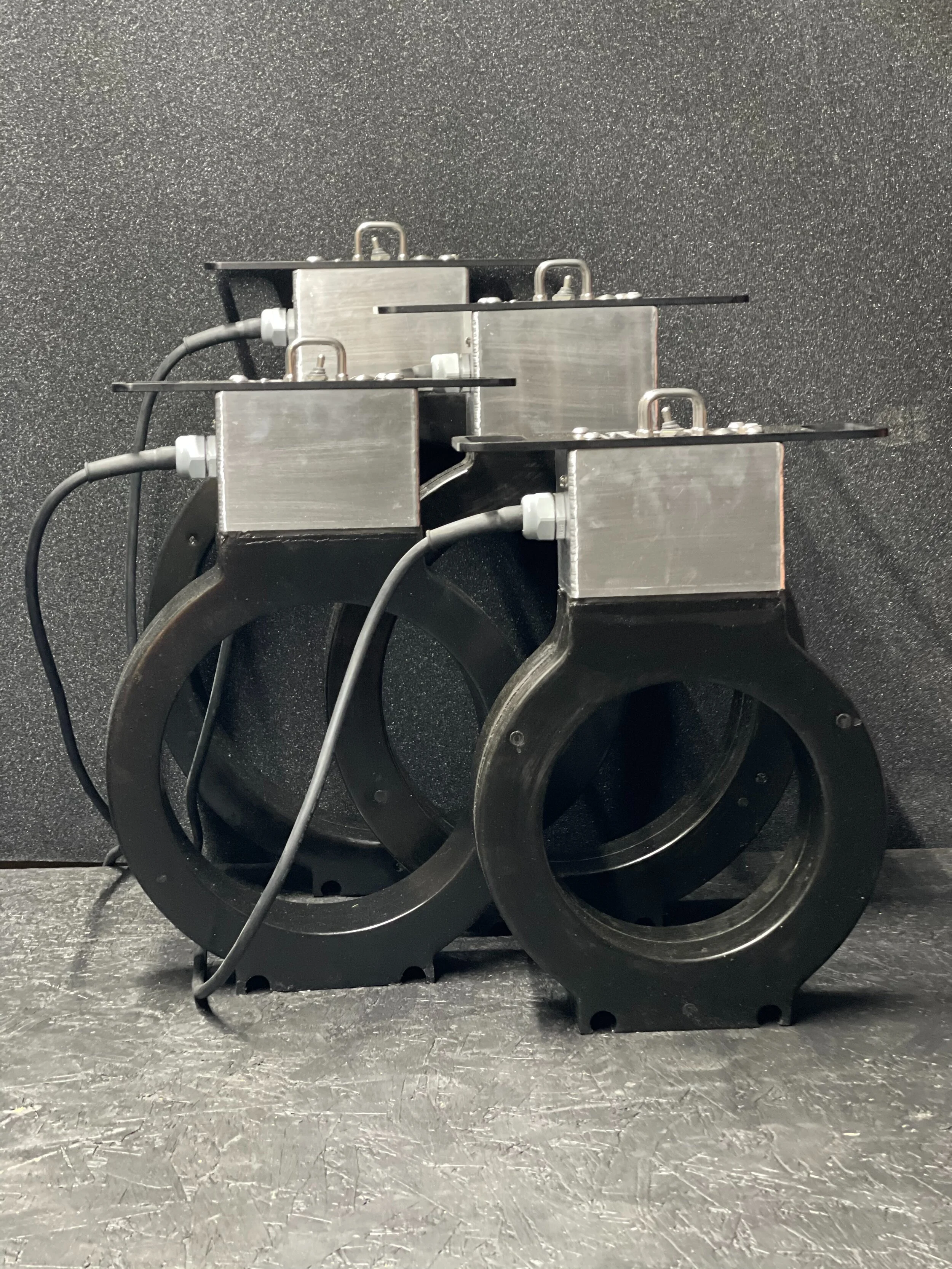

We manufacture four very different Series of Coils:

WA, WS, WP and WD Series

WP-Series Coils are medium duty AC/DC Coils offering a true Pulsed DC output.

Downhole Tools capable.

The WP-Series are available in 4 ID Sizes:

203mm (8")

254mm (10")

305mm (12")

356mm (14")

Base unit is AC only, first option is Pulse DC, upgradeable to Infinitely Variable DC, with the last upgrade being Reversible Polarity to allow for Demagnetization.

Thus a 12" model can be: WP-12, WP-12D, WP-12DV or WP-12DVR.

No other Magnetic Coil Manufacturers offer these features.

WA Series Coils can best be described as Light Duty or Utility Grade Electromagnetic Inspection Coils.

These powerful AC Coils are offered in four models:

WA-8 (8" or 203mm)

WA-10 (10" or 254mm)

WA-12(12" or 305mm)

WA-14 (14" or 356mm)

As an entry level Mag Coil, the WA-Series of AC Magnetizing Coils are very economically priced.

WS-Series Coils are extremely powerful Pulse DC Coils, considered Drill Pipe End Area Coils.

Offering the highest DC current and highest amps.

For seasoned Pipe Inspectors this is a 21st Century version of the very successful Smith International Drilco® Coils.

Western offers WS-Series in 4 ID sizes;

WS-8 (203mm)

WS-10 (254mm)

WS-12 (305mm)

WS-14 (356mm)

All WS Coils weigh under 20 pounds (9kg)!

WD-Series Coils are heavy duty Coils being equipped with Infinitely variable DC output, and Reversing Polarity.

They have gained a Worldwide reputation for their ability to Demagnetize.

These Mag/Demag Coils are offered with numerous Options, including:

AC, Pulse DC , Automatic Ring Down and numerous Mechanical options for protection, mounting and manipulation.

WD-Series Coils are offered in numerous ID sizes:

8 5/8" (219mm) to 60" (1524mm)

with the larger sizes applicable for Pipeline Pre-Weld Demagnetization.
