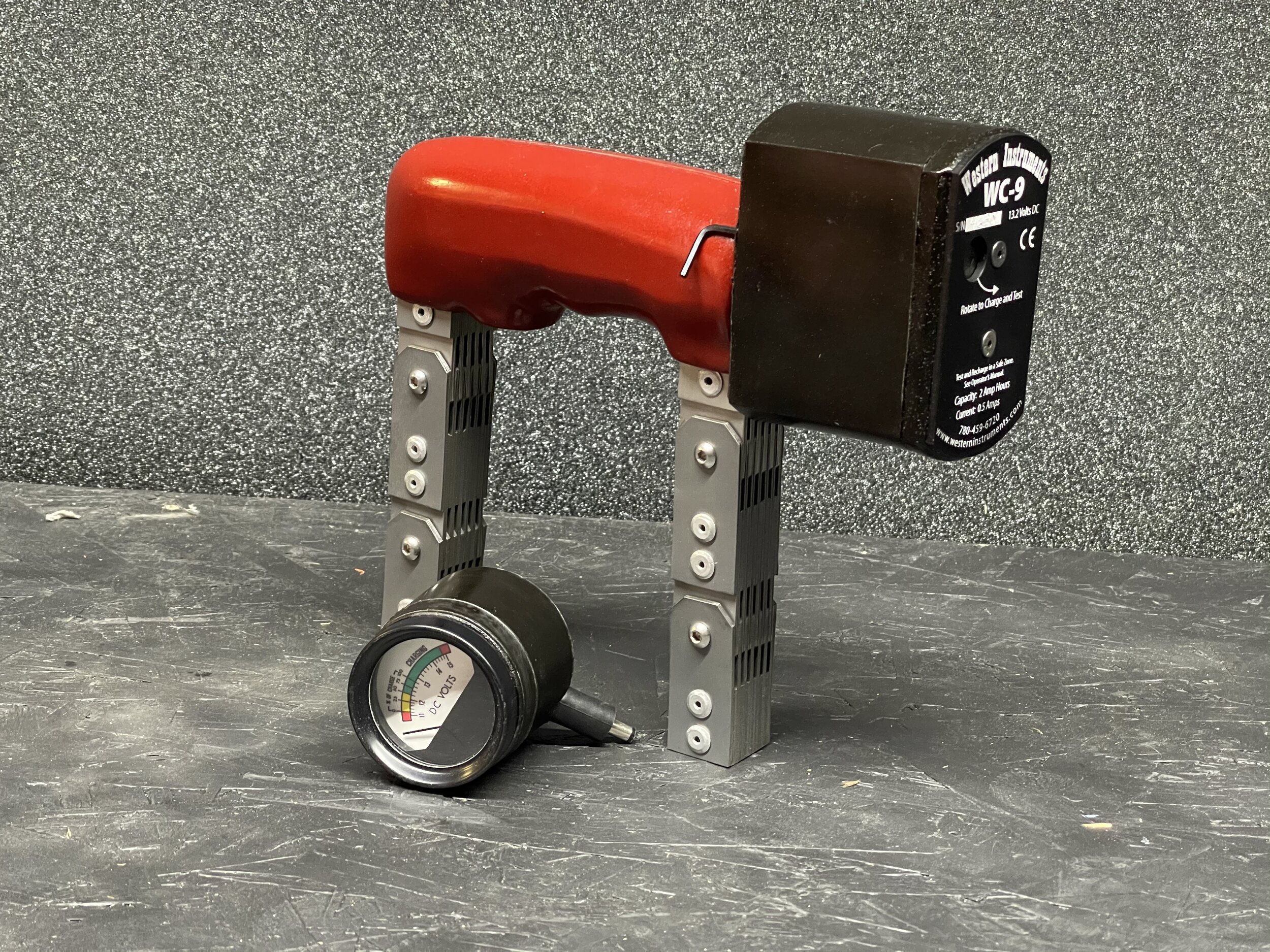

WC-9_Angle View w.Volt meter.jpg Image 2 of 3
WC-9_Angle View w.Volt meter.jpg

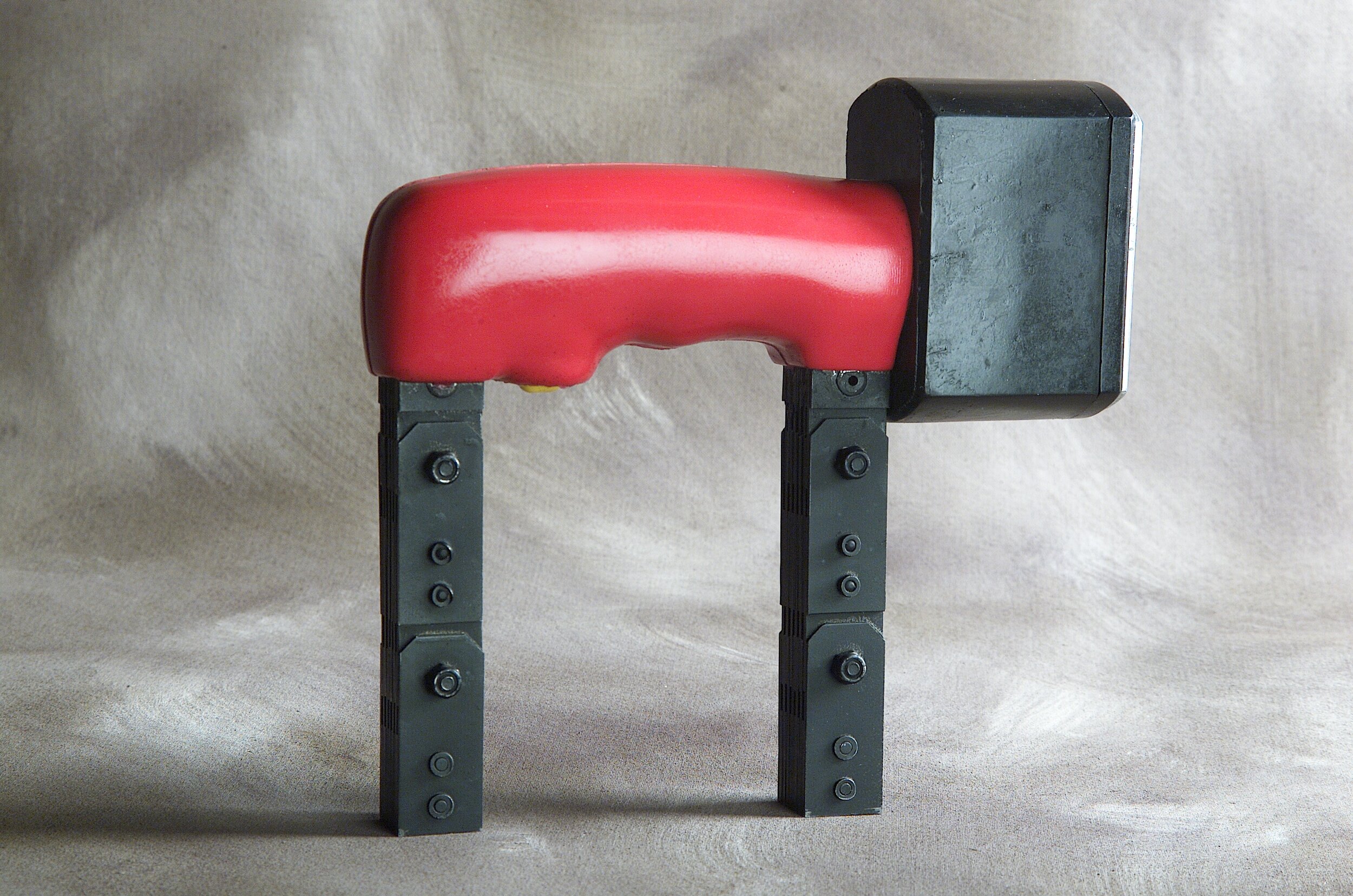

WC-9 Standing.jpg Image 3 of 3
WC-9 Standing.jpg
WC-9_Side View.jpg
WC-9_Angle View w.Volt meter.jpg
WC-9 Standing.jpg

Battery Powered Yoke

$1,170.00

WC-9

When your out on location and there's no power, we got you covered with the WC-9

Quantity:
Add To Cart

WC-9

When your out on location and there's no power, we got you covered with the WC-9

WC-9

When your out on location and there's no power, we got you covered with the WC-9

Our WC-9 uses the basic Western Instruments WC-Series Platform. This Platform design is similar to our standard W-Series Platforms, but far more compact. This construction versatility is possible through our advanced Mechanical, Electrical, and Solid State Electronics designs. These designs permit the WC-Series to use our standard low profile sealed membrane activation switch, continuing our philosophy for operator safety, as the switch has a grounding provision and conducts less than Ω Watt of power. The urethane rubber housing provides superior durability in rugged environments.

The ergonomically designed housing combined with its light weight, reduces operator fatigue and strain permitting better and longer inspections. The compact design allows the WC-9 to fit into confined spaces better than our full size W-Series Models. Combined with our Universal Articulating Pole Pieces, so the WC-9 can fit almost any configuration of work piece. All W-Series Yokes have more height between the operator's hand and the work piece, which means faster inspection due to a larger view of the target area.

The WC-9 represents one of the greatest technical advancements, in the Portable Magnetic Particle Testing Equipment Industry, with total operator mobility. The WC-9 draws O.5 Amps, so the 13.2 Volt Battery (1.5 Amp Hours) provides a full 2 hours of continuous operation, translating (*) into a typical working day for most operators. The individual cells of the WC-9's Battery Pack are not 'potted', so the Pack can be rebuilt.

The WC-9 meets industry specifications, lifting 50 Pounds (23Kg), for DC Yokes, however the Pulsing DC Field (125Hz) provides better particle mobility than Full Wave DC fields. The WC-9 is supplied with an Battery Voltage Meter, to ensure Lift Capacity.

The WC-9 is designed for operation in Class I, Division 2 Environments, however battery testing and charging is done in a 'safe zone'. Western Instruments Cordless Yokes (WC-9) is the only Yoke of their type in the World!

*Based on Western Instruments Battery Duration Tests
