Permanent Magnet Yoke

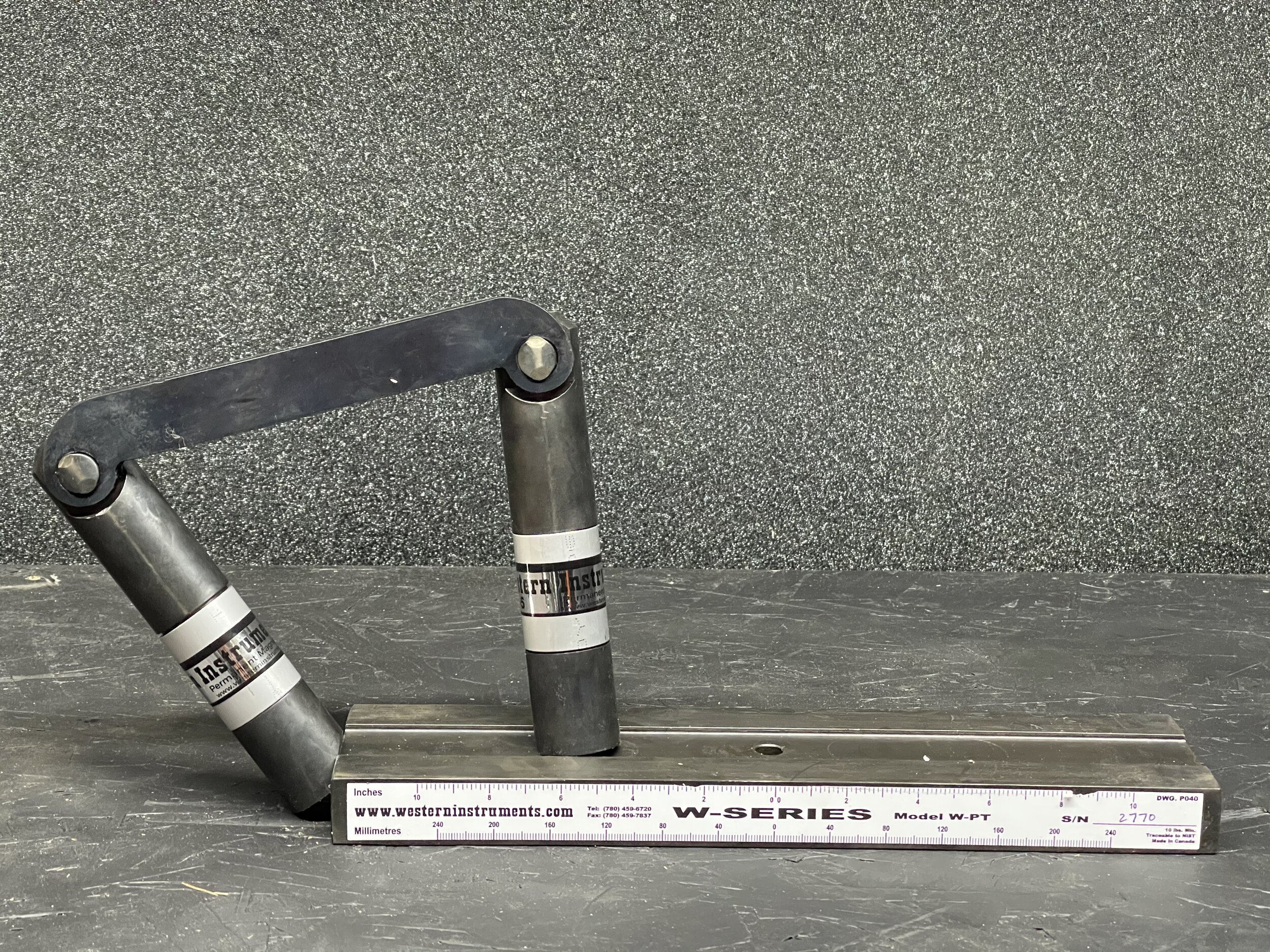

Permanent Magnet Yokes are a great convenience in Magnetic Particle Inspection, due to their complete portability, as no electricity is required. All WM-Series Yokes utilize Rare Earth Magnet Cartridges specifically manufactured to our high performance needs. WM-Series Yokes lift over 60 Pounds, and with recharging not being necessary, the minimum lift of 50 pounds (23 Kg) is assured for years. The WM-5 is a Hinged Frame unit, equipped with Rotating Contact Feet, which easily permits the inspector to maximize the contact area between the Dual Contact Surfaces on the pole pieces and the work piece. These units have field replaceable magnet cartridges, in the unlikely event of a failure. The WM-5 is considered a Standard Permanent Magnet Yoke.
